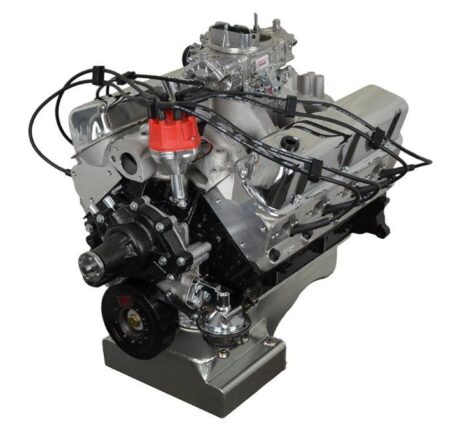

ATK HP21C-EFI Ford 408 Stroker Complete Engine 430HP

Description

Engine Specifications:
• HP: 430
• TQ: 500
• Block: Seasoned OE roller block 1993-1997
• Bore/Stroke: 4.040 x 4.000
• Displacement: 408
• Crankshaft: Scat nodular iron internal balance
• Rods: Scat 4340 forged I beam with ARP 8740 bolts
• Pistons: Forged 10.1 compression
• Rings: Moly
• Camshaft: Hyd. Roller
• Cam Specs: 220/224 @50 .512in/.512ex 112LSA
• Timing Chain: Double roller
• Cylinder Heads: Dart aluminum 58cc/170cc 2.02/1.60
• Rocker Arms: Aluminum 1.6 roller rockers
• Oil Pan: Front sump
• Oil Pump: Melling high volume
• Balancer: Internal balance
• Flexplate/Flywheel: Internal balance 164 tooth
• Intake Manifold: Edelbrock performer RPM dual plane #7181
• Distributor: Pro Billet (upgraded melonite gear) MUST RUN MSD IGNITION BOX FOR TACH SIGNAL
• Water Pump: Early RH inlet standard rotation
• EFI System: Fitech Go EFI 4 600HP (throttle body, wire harness and hand held unit included)
• Fuel Pump: Not Provided – must run electric pump or mechanical fuel pump with Fitech Fuel Command Center
• Spark Plugs: Autolite #3923
• Spark Plug Wires: 8mm

Engine Info:
• Oil: Conventional / Non Synthetic 10W30
• Oil Filter: Wix or K&N per application
• Timing: 34-36 Degrees
• Spark Plug Gap: .035”
• Firing Order: 13726548
• Octane: 91+
• Stall Converter: 2200-2500
• Exhaust: 1 5/8 – 1 3/4 Headers

Disclaimer: The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work in their application. Some modifications to the vehicle may be required using these and or other aftermarket parts. ATK reserves the right to substitute parts used in engines if necessary.
