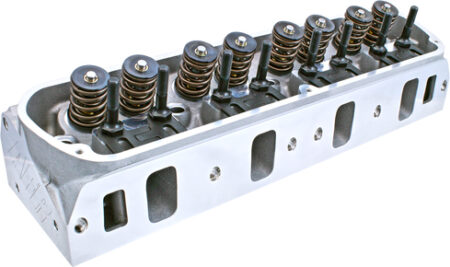

AFR 195cc SBC Enforcer Cylinder Heads 1001

Description

AFR’s 195cc SBC Enforcer Cylinder heads feature our Permanent Mold “As-Cast” Technology surfaces on the intake runners, exhaust runners and combustion chambers that allows for extremely accurate and repeatable port location/performance. This budget friendly head is perfect for your 350 to 400 Cubic Inch operating below 6000 RPM.

They come fully assembled with the identical components found in our higher end CNC ported cylinder heads; such as ARP rockers studs, PAC Racing springs, viton valve seals, AFR adjustable guide plates, machined bead valve locks (not stamped), hardened spring cups our one piece 8mm 21 4N Stainless Steel valves.

Combustion Chamber Volume (cc):
64
Intake Runner Volume (cc):
195cc
Exhaust Runner Volume (cc):
76cc
Cylinder Head Style:
Assembled
Cylinder Head Material:
Aluminum
Intake Port Shape:
Rectangular
Intake Valve Diameter (in.):
2.020 in.
CNC-Machined Combustion Chamber:
No
CNC-Machined Intake Runner:
No
CNC-Machined Exhaust Runner:
No
Combustion Chamber Style:
Heart
Intake Port Location:
Standard
Exhaust Port Shape:
Square
Exhaust Port Location:
Standard
Spark Plug Style:
Straight
Intake Valves Included:
Yes
Exhaust Valves Included:
Yes
Exhaust Valve Diameter (in.):
1.600 in.
Valve Springs Included:
Yes
Maximum Valve Lift (in.):
0.600 in.
Camshaft Style:
Hydraulic roller
Outside Diameter of Outer Spring (in.):
1.290 in.
Damper Spring Included:
Yes
Number of Springs Per Valve:
Dual
Retainers Included:
Yes
Retainer Material:
Chromoly steel
Locks Included:
Yes
Lock Style:
7 degree
Valve Stem Seals Included:
Yes
Rocker Arm Studs Included:
Yes
Rocker Arm Nut Thread Size:
3/8 in.-24
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
Yes
Guideplate Pushrod Size:
5/16 in.
Valve Cover Mounting Style:
Perimeter bolt
Accessory Bolt Holes Drilled:
Yes
Intake Valve Angle:
23
Exhaust Valve Angle:
23
Valve Guides Included:
Yes
Valve Seats Machined:
Yes
Valve Seat Machine Style:
3-angle
Valve Seat Material:
Ductile iron
Cylinder Head Color:
Natural
Steam Holes Drilled:
No
Oiling Style:
Through pushrod
Machined for O-Ring:
No
Heat Crossover:
No
Quantity:
Sold individually.
