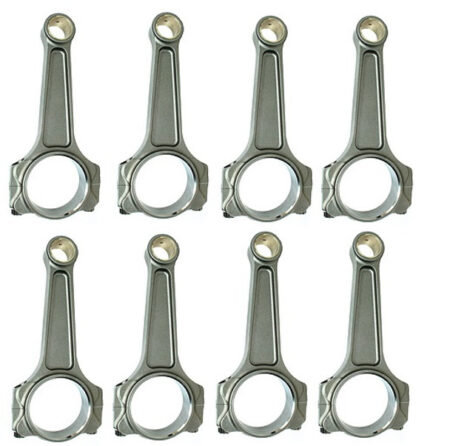

Boostline LS 6.125″ Connecting Rods LS6125-927

Description

Boostline Chevrolet LS Connecting Rod Set, 6.125 in. Length, 0.927 in. Pin, 2.100 in. Journal, 7/16 in. ARP 2000 Bolts, 4340 Steel, Patented Three-Pocket Design, Set of 8.

BoostLine connecting rods are designed and built for the stressful demands of high-powered, forced induction and nitrous LS engines. Proven in the lab and on the track in 2,000HP, eight-cylinder applications, BoostLine rods are forged from premium 4340 steel and utilize a patented, three-pocket design, maximizing strength while minimizing rotating weight. This revolutionary design dramatically improves each rods’ big-end stability under tensile loads and provides a 60% improvement in bending strength and 20% stress reduction in tension compared to H-beam designs, benefits crucial to durability in four-digit-horsepower engines. Each rod is equipped standard with industry leading ARP hardware and is subject to a 26-point, CMM inspection with all critical dimensions provided via an inspection card provided with every set of BoostLine rods. BoostLine connecting rods are the complete package for everything from powerful projects to all-out race cars.

Purpose-Built For Boost High Boost and Nitrous LS Applications
Forged From Ultra-Strong 4340 Steel
Patented Three-Pocket Design
Capable of 2000 HP
Stroker Clearance
7/16 x 1.400 in. ARP 2000 Fasteners
High Quality APMCO Bronze Pin Bushing
26 Point Detailed CMM Inspection Report Included

Big End Width 0.940
Bolt Diameter 7/16
Bolt Part Number BT71401-2S
Journal Size 2.100
Main Bearing Bore Diameter 2.225
Material Forged 4340 Steel
Pin End Bore 0.927
Product Types Connecting Rod Kits
Rod Length 6.125
Rod Type I-Beam
Wrist Pin Journal Bushing Width 1.010
